Series VRR
Technical Data
Features

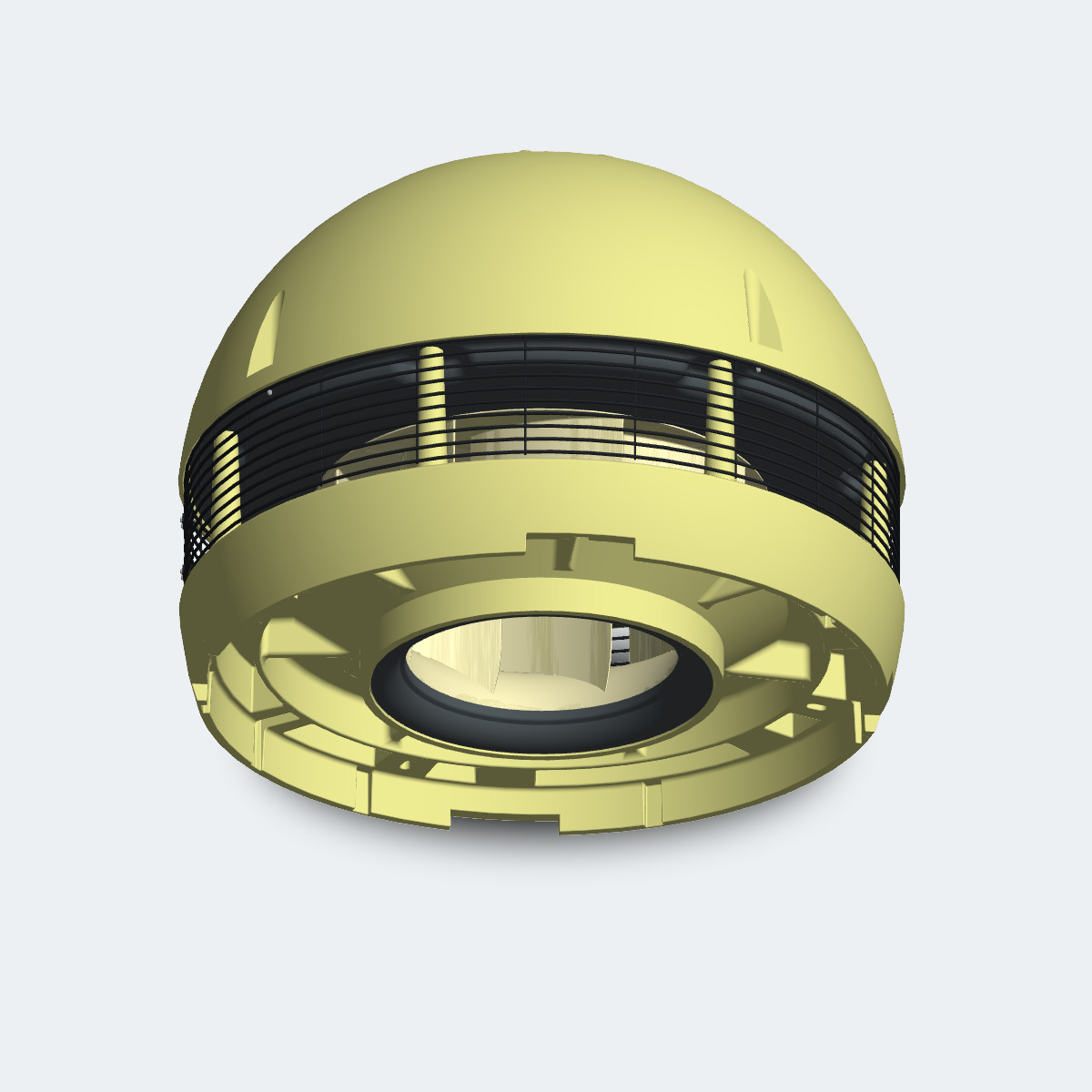

All-plastic roof fan
Drive by standard motor outside the flow rate
excellent corrosion and weather resistance
horizontal throw (with deflector ring accessory: vertical throw)
special version for laboratory suction
explosion-proof versions for gases of zone 2 according to ATEX
Sizes: 160, 200, 315, 400, 500
Performance range:
Volume flow up to 22700 m³ / h
Pressure increase up to 1600 Pa
Peak efficiency for free blowing of 77%
extensive electrical and ventilation accessories
Field of applications
Process suction in the chemical industry
Residential ventilation / central ventilation systems
Contact
Equipment
Downloads
model series documents
de
Ausschreibungstext (Ex) Baureihe VRR / 702
de
Ausschreibungstext (Standard) Baureihe VRR / 702
en
de
Roof fans VRR
Betriebsanleitung mit Konfomitätserklärung Dachventilatoren VRR
en
de
Roof fans VRR - with accessory
Prospekt Dachventilator Baureihe VRR
Schaltbilder (DE)
cad documents
VRR 160/701W
Dachventilator VRR 160/701W Drawing (PDF)
Dachventilator VRR 160/701W Drawing (DWG)
Dachventilator VRR 160/701W Model (DWG)
Dachventilator VRR 160/701W Model (STP)
VRR 200/702W
Dachventilator VRR 200/702W Model (DWG)
Dachventilator VRR 200/702W Model (STP)
Dachventilator VRR 200/315 Drawing 1 (DWG)
Dachventilator VRR 200/315 Drawing 1 (PDF)
Dachventilator VRR 200/315 Drawing 2 (DWG)
Dachventilator VRR 200/315 Drawing 2 (PDF)
Dachventilator VRR 200/315 Drawing 3 (DWG)
Dachventilator VRR 200/315 Drawing 3 (PDF)
VRR 315/702W
Dachventilator VRR 315/702W Drawing (PDF)
Dachventilator VRR 315/702W Drawing (DWG)
Dachventilator VRR 315/702W Model (DWG)
Dachventilator VRR 315/702W Model (STP)
Dachventilator VRR 200/315 Drawing 1 (DWG)
Dachventilator VRR 200/315 Drawing 1 (PDF)
Dachventilator VRR 200/315 Drawing 2 (DWG)
Dachventilator VRR 200/315 Drawing 2 (PDF)
Dachventilator VRR 200/315 Drawing 3 (DWG)
Dachventilator VRR 200/315 Drawing 3 (PDF)
VRR 400/701W
Dachventilator VRR 400/701W Model (DWG)
Dachventilator VRR 400/701W Model (STP)
Dachventilator VRR 400/ VRR500 Drawing (DWG)
Dachventilator VRR 400/ VRR500 Drawing (PDF)
VRR 500/702W
Dachventilator VRR 500/702W Model (DWG)
Dachventilator VRR 500/702W Model (STP)
Dachventilator VRR 400/ VRR500 Drawing (DWG)
Dachventilator VRR 400/ VRR500 Drawing (PDF)
VRR - Laborausführung LAB
Dachventilator VRR 200 LAB Drawing (PDF)
Dachventilator VRR 200 LAB Drawing (DWG)
