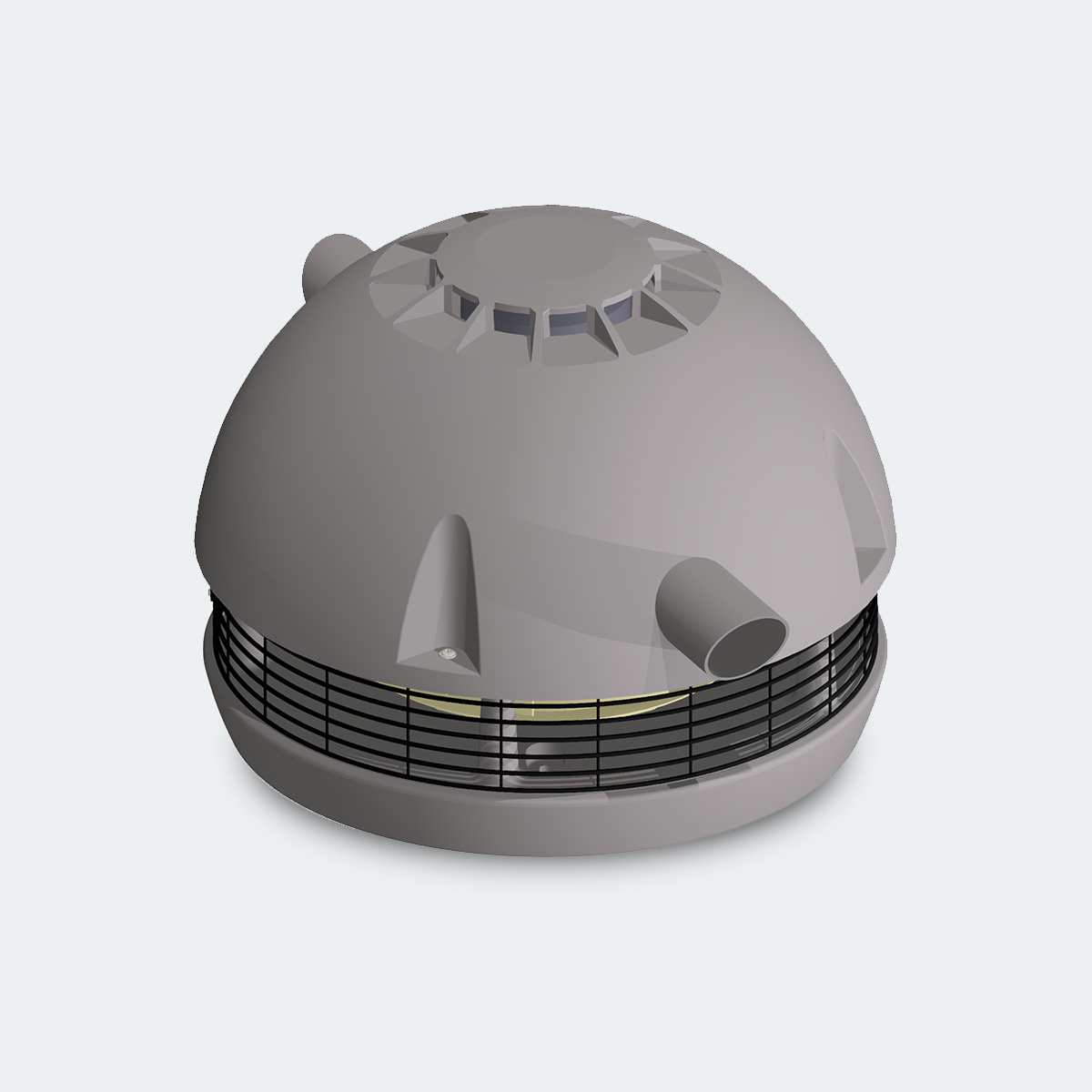

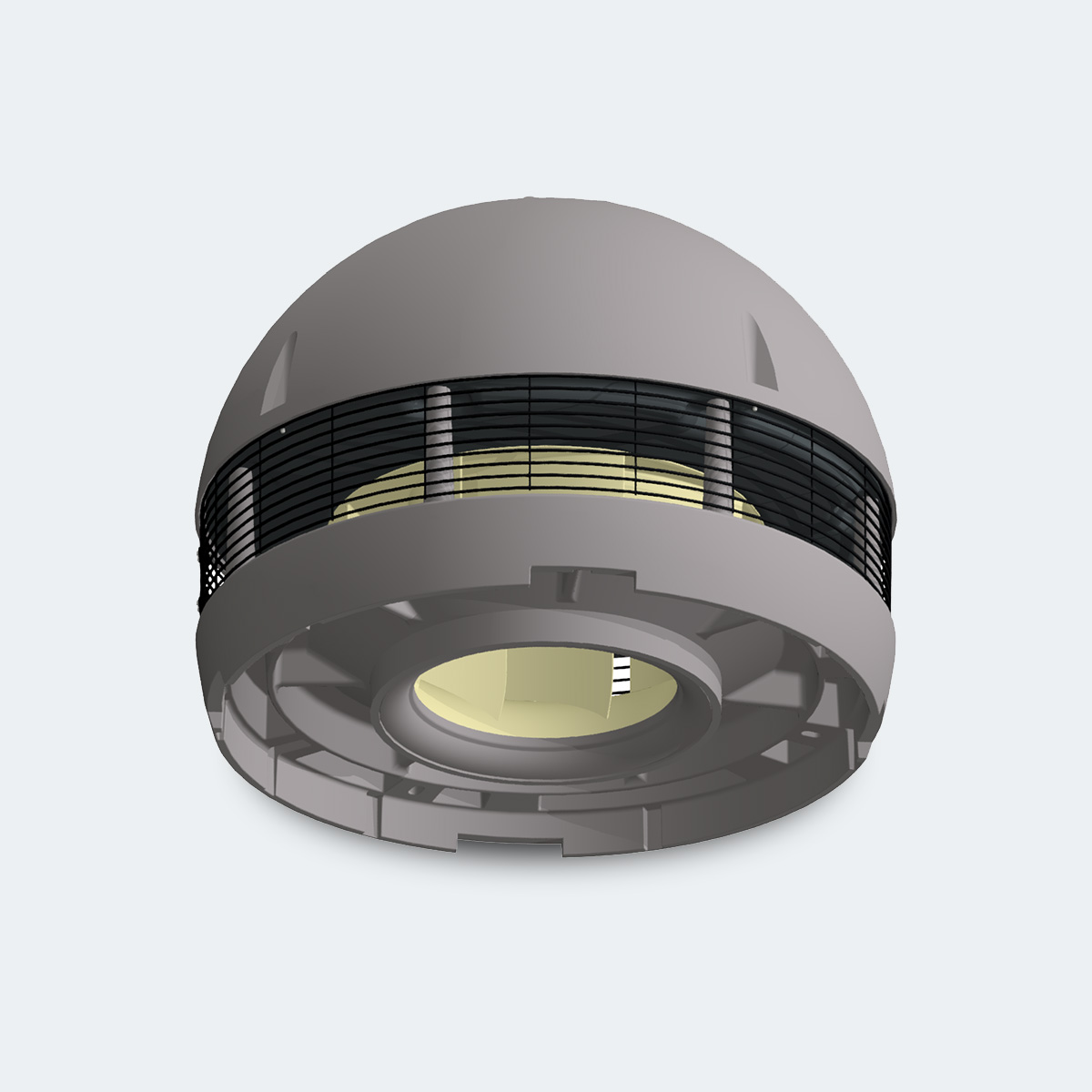

Series VRR - EC

Technical Data


  • All-plastic roof fan
  • Direct drive by EC motor outside of the flow rate
  • excellent corrosion and weather resistance

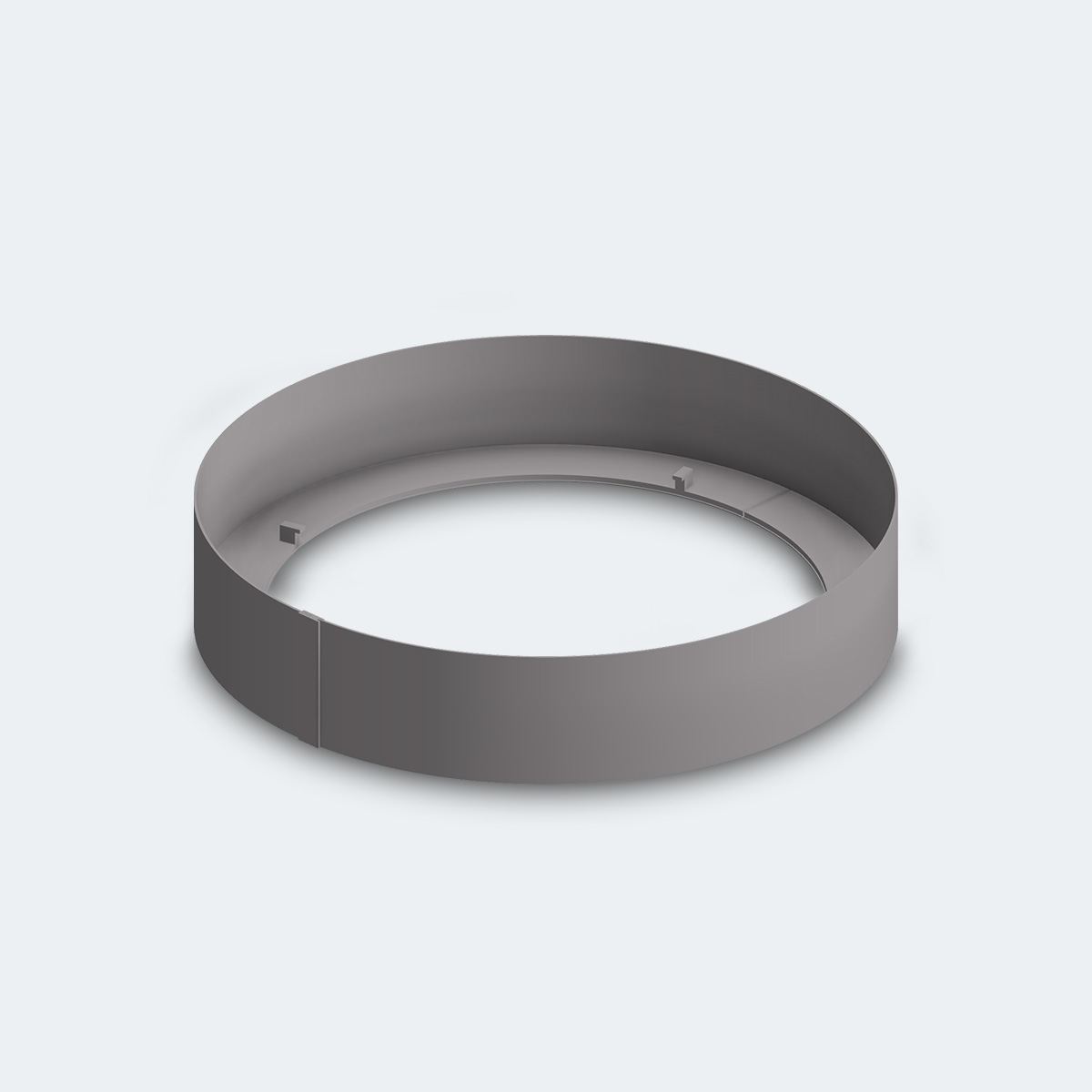

  • horizontal discharge (with deflector ring accessory: vertical discharge)
  • special version for laboratory suction
  • Sizes: 160, 200, 315, 400
  • Performance range:
    • Volume flow up to 10300 m³ / h
    • Pressure increase up to 1250 Pa
    • Peak efficiency for free blowing of 77%
  • extensive electrical and ventilation accessories

Field of applications

  • Ventilation of laboratories, homes, schools, etc.
  • not suitable for operation in potentially explosive areas according to the ATEX directive
